Предзаказ
Описание

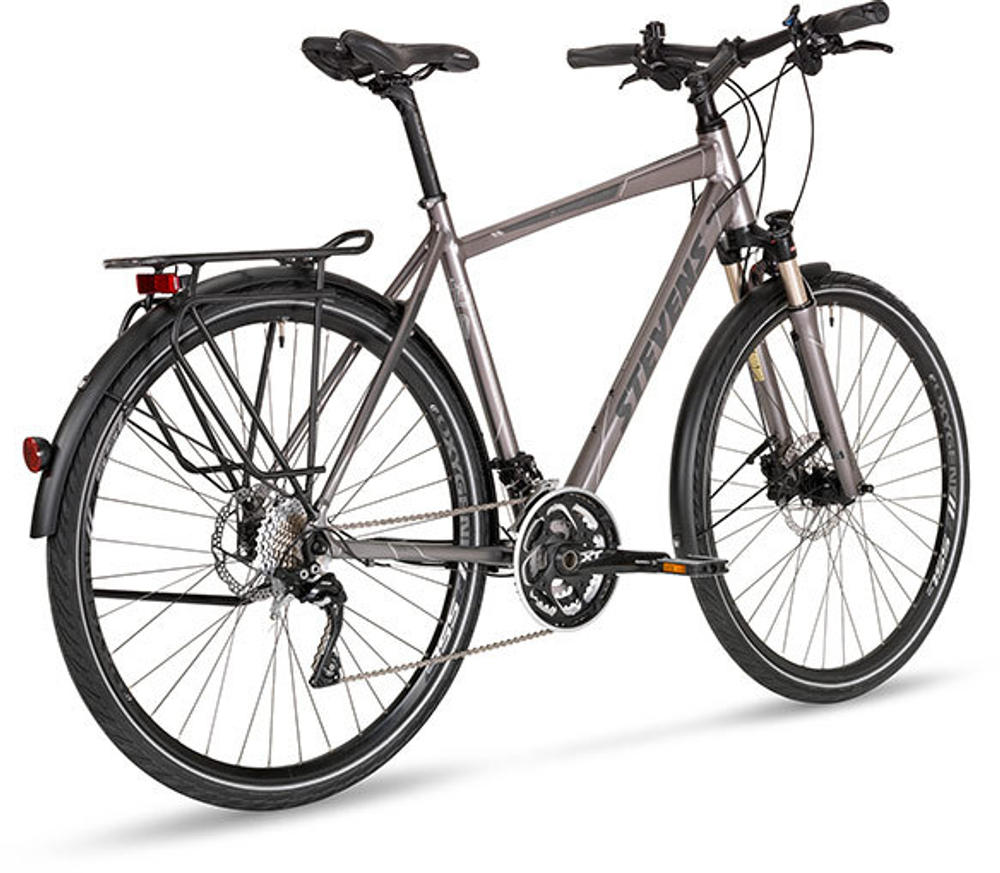

Если использовать термин "Премиум Поход" всерьез, то это про топовый треккинг велосипед Stevens Avantgarde SX Luxe Disc с прекрасно продуманной, легкой алюминиевой рамой, крепкими и надежными дисковыми тормозами Shimano, стильными компонентами трансмиссии Deore XT и множеством деталей высокого качества, которые отличают велосипеды Stevens от конкурентов.
| Вес | 14.1kg |
|---|---|
| Размеры | 48, 52, 55, 58, 61cm |
| Рама | Aluminium 6061 TB |
| Цвет | Titanium Grey |
EQUIPMENT
| Frame |  |
Aluminium 6061 TB |
|---|---|---|
| Front fork |  |
SR Suntour NCX-E RL Air 15QR, 63mm, Taper |
| Headset |  |
STEVENS MTB 1 1/2", ZS44/28.6 | ZS55/40 |
| Brakes |  |
Shimano BR-T615, 180/160mm CL |
| Crankset |  |
Shimano Deore XT FC-T780, 48-36-26T, w/ chainguard |
|---|---|---|
| Derailleur r |  |
Shimano Deore XT Shadow RD-M781-SGS |
| Derailleur f |  |
Shimano Deore XT FD-T781-L3 |
| Chain |  |
Shimano CN-HG95 |
| Cassette |  |
Shimano CS-HG81, 11-32T, 10-speed |
| Pedals |  |
City Superlite Cartridge |
| Gear ratio |  |
 1.80 - 9.69 m, 3*10 |
| Hubs |  |
Shutter Precision PL-8X | Shimano Deore XT FH-M785 |
|---|---|---|
| Rims |  |
Oxygen SSL-D, 21C |
| Tires |  |
Continental Contact 2 Extralight 42-622, foldable, Reflex |
| Handlebar |  |
Oxygen Scorpo Rise 20mm, 9°, 640mm |
|---|---|---|
| Stem |  |
Oxygen Scorpo 31.8mm, 17° |
| Saddle |  |
Selle Royal Viper Gent |
| Seatpost |  |
Oxygen Scorpo |
| Shiftlever |  |
Shimano SLX SL-M670-I |
| Brakelever |  |
Shimano Deore BL-T615 |
| Lighting |  |
B+M IQ2 Eyc T Senso+ 50 Lux | Shine Evo |
| Accessories |  |
Racktime Shine Evo system carrier | integr. Pletscher stand |
| Weight |  |
14.1kg |
|---|---|---|
| Sizes |  |
48, 52, 55, 58, 61cm |
| Color(s) |  |
Titanium Grey |
| Laden weight | |
130kg |
TEST REPORTS
Trekkingbike Super
01/2015
The STEVENS Avantgarde amalgamates sportiness, lightweight, safe function and sound quality into a sort of Swiss-Army-knife bike.
Radtouren Note 1,8
03/2014
Avantgarde Luxe Lady: This is what lady trekking bike has got to be: A place on the podium for Stevens thanks to its perfect handling, outstanding craftsmanship ad awesome specs..
Bike & Trekking (NL) Gut
03/2011
Great touring bike: The Avantgarde is a meticulously crafted, appealing bike with a beautiful frame. It drives excellently with or without baggage.
GEOMETRY
| Frame height (cm) | 48 | 52 | 55 | 58 | 61 | Measuring mode | |
|---|---|---|---|---|---|---|---|
| Seattube length | A1 | 604 | 634 | 654 | 678 | 701 | nominal |
| Seattube length | A2 | 480 | 520 | 550 | 580 | 610 | bottom bracket to top of seattube |
| Seattube length | A3 | 415 | 455 | 486 | 516 | 547 | bottom bracket to top of top tube |
| Top tube length | B | 537 | 549 | 564 | 579 | 591 | |
| Top tube horizontal | C | 558 | 574 | 589 | 605 | 617 | center headtube to center seatpost/seattube |
| Headtube angle (°) | D | 69 | 70 | 70 | 71 | 71 | |
| Seattube angle (°) | E | 73.5 | 72.5 | 72.5 | 72.5 | 72.5 | |
| Wheelbase | F | 1068 | 1069 | 1085 | 1090 | 1097 | |
| Chainstay length | G | 450 | 450 | 450 | 450 | 450 | |
| Headtube length | H | 110 | 135 | 155 | 175 | 195 | |
| Bottom bracket drop | I | 65 | 65 | 65 | 65 | 65 | distance of bottom bracket to hub level* |
| Bottom bracket height | K | 283 | 283 | 283 | 283 | 283 | distance to ground* |
| Fork rake | L | 42 | 42 | 42 | 42 | 42 | |
| Slope | M | 181 | 172 | 160 | 154 | 146 | top tube level distance front to rear |
| Wheel radius | N | 348 | 348 | 348 | 348 | 348 | incl. tires |
| Standover height | O | 734 | 767 | 793 | 819 | 846 | top of top tube to ground** |
| Fork build height | P | 455 | 455 | 455 | 455 | 455 | incl. lower headset cups* |
| Front wheel - bottom bracket | Q | 626 | 627 | 643 | 648 | 655 | |
| Reach | R | 385 | 383 | 391 | 400 | 405 | center bottom bracket to center headtube, horizontal |
| Stack | S | 580 | 605 | 624 | 647 | 668 | center bottom bracket to center headtube, vertical |
| Stack/Reach (1:x) | 1.51 | 1.58 | 1.6 | 1.62 | 1.65 | ratio stack to reach | |
| Seatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | ||
| Stem length | 90 | 100 | 100 | 110 | 120 | center-center | |
| Stem angle (°) | 17 | 17 | 17 | 17 | 17 | ||
| Handlebar diameter | 31.8 | 31.8 | 31.8 | 31.8 | 31.8 | ||
| Assembled spacers | 23.2 + 5 + 5 + 10 + 10 | ||||||
| Handlebar width | 640 | 640 | 640 | 640 | 640 | ||
| Cranklength | 170 | 170 | 175 | 175 | 175 | ||
| 48 | 52 | 55 | 58 | 61 | |||
* Values measured with rider on board and slightly compressed front fork / rearshock (regular riding position)
** measured 1/3 from seattube and 2/3 from headtube, fork and rearshock not compressed (static)
Характеристики
Бренд
Stevens
Вид велосипеда
Гибрид
Передний амортизатор
SR Suntour NCX-E RL Air, 63 mm, Tapered, Remote Lockout
Тормоз название
Shimano Disc Deore BR-T615, 180/160 mm
Пол
мужской
